PRECISION COLD FORGING

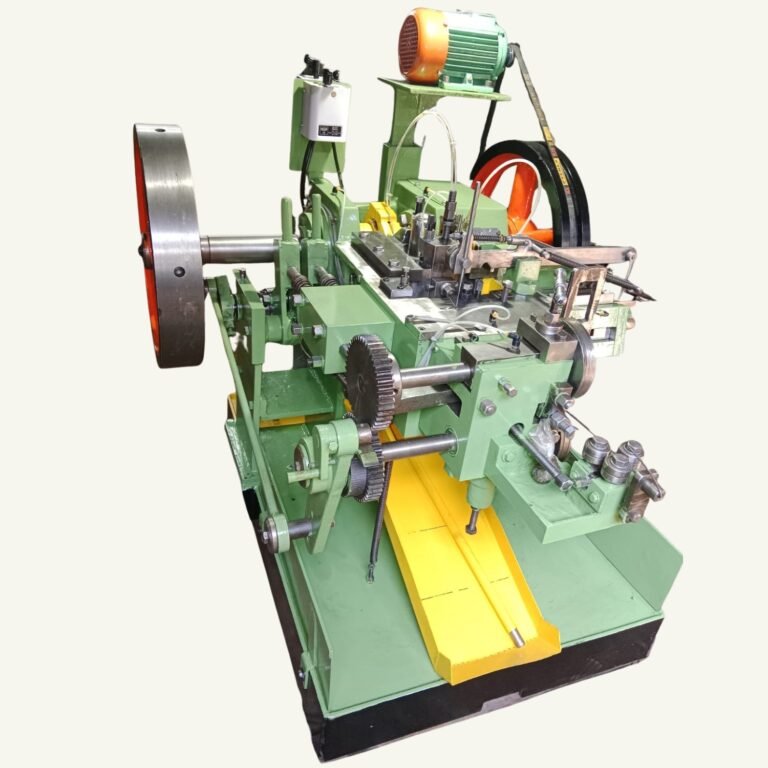

COLD HEADING MACHINE
HIGH VOLUME FASTENER & COMPONENT PRODUCTION
Built for fastener lines and parts formers, these machines deliver consistent tolerances at production speeds. They are the backbone of bolt, screw, rivet and special component manufacturing.
ENGINEERED TO LAST
KEY FEATURES
Low Noise Knock Out
Quieter operation and reduced shop floor fatigue during long production runs.
Safety Shear Pins
Pins on the knock out and cut off mechanisms protect major parts from damage during overload or jams.
Up and Down Punch Slide
Smooth, precise punch travel for accurate, repeatable forming.
Easy Knock Out Adjust
Fast, tool light setup and changeover between jobs.
Rigid Heavy Duty Frame
Vibration free running for tight, repeatable tolerances.
Hardened & Ground Gears
Long service life under continuous high load operation.
THE PROCESS
HOW IT WORKS
Straighten
Metal wire is fed through a straightening system.
Cut to Length
The wire is cut into precise blanks.
Feed to Die
Blanks are pushed into the forming dies.
Punch & Form
Punches apply high pressure to shape the head.
Repeat at Speed
The cycle runs continuously with minimal secondary machining.
WHY COLD HEADING
THE ADVANTAGES
High Productivity
Consistent, high-volume output of thousands of parts per hour.
Material Efficiency
Minimal waste compared to traditional machining.
Stronger Parts
Work hardening increases tensile strength and durability.
Lower Cost Per Part
Less material, faster production and minimal post processing.
WHAT YOU CAN MAKE
APPLICATIONS
COLD HEADING MACHINE SPECIFICATION SHEET
Full technical specifications for all models (H-3 to H-10L): cut off diameter, die sizes, P.K.O. stroke, motor power, maximum output and machine weight.
NEED A COLD HEADING MACHINE FOR YOUR LINE?
Tell us your fastener type, size range and output target. Our team will recommend the right model and send a tailored quote.
